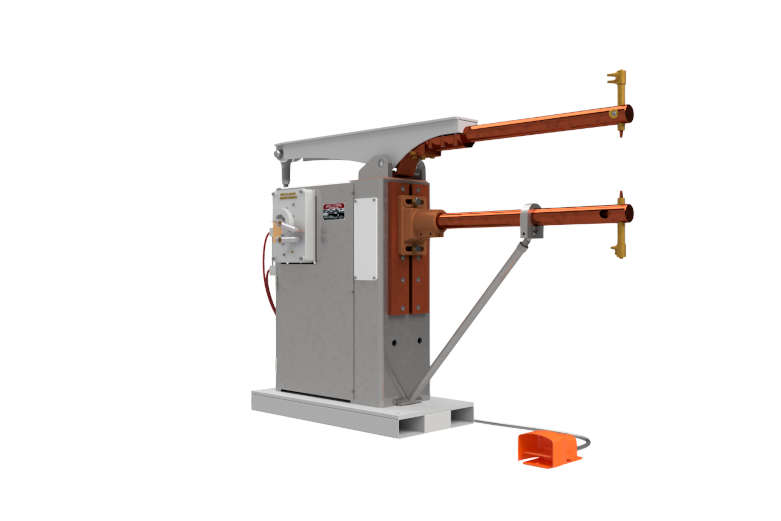

MODEL AF-2B
The model AF-2B is a heavy duty welder that is equipped with: Horn type size 3, 2‐1/2" diameter solid copper arms drilled 90° and 30° on one end, two standard ejector type water cooled electrode holders 1‐1/4" dia. #2MT, 10" vertical adjustment of lower knee, 8 point heat selector switch, 2 circuit water manifolds for input and output cooling water, 4" bore x 3" stroke double acting air cylinder with adjustable speed and cushioning, four way solenoid operated air valve, air line filter, pressure regulator, gauge and lubricator, and single stage foot switch with toe guard and cable.
All Welding Machines are available in 208, 220, 440, and 550 Voltage configurations.
The model AF-2B is available in the following KVAs: 30, 50, and 75
Features
Arm Adjustments
Cylinder speed control exhaust mufflers.
Roller bearing pivot on rocker arm.
AVAILABLE OPTION: Adjustable Retractable Stroke.
AVAILABLE OPTION: Lower Arm Support (over 24" throat).
AVAILABLE OPTION: Universal copper arms drilled 90° and 30°.
Electrodes
Universal 2 1/2" solid copper arms drilled 90° and 30°.
Water cooled electrode holders.
Frame
AVAILABLE OPTION: Two Stage Foot Switch.
AVAILABLE OPTION: Special Electrode holders and tips.
Heat Selector
Point opening easily adjusted.
Transformer
Water cooled transformer for trouble free continuous production.
Welding Controls
8 position tap switch for precise transformer output.
8 welding heats.
AVAILABLE OPTION: Solid State fully automatic, programmable Welding Control.
AVAILABLE OPTION: Water Chiller.
Other
AVAILABLE OPTION: Extra Large Tip Opening.
AVAILABLE OPTION: Water chiller.
Specifications
| RATED KVA | THROAT DEPTH | MAX TIP OPENING | C.R. STEEL GA. | STAINLESS GA. | GALV. STEEL GA. | L.C. STEEL ROD GA. | APPROX SHIPPING WEIGHT |
|---|---|---|---|---|---|---|---|
