MODEL AFPL-3

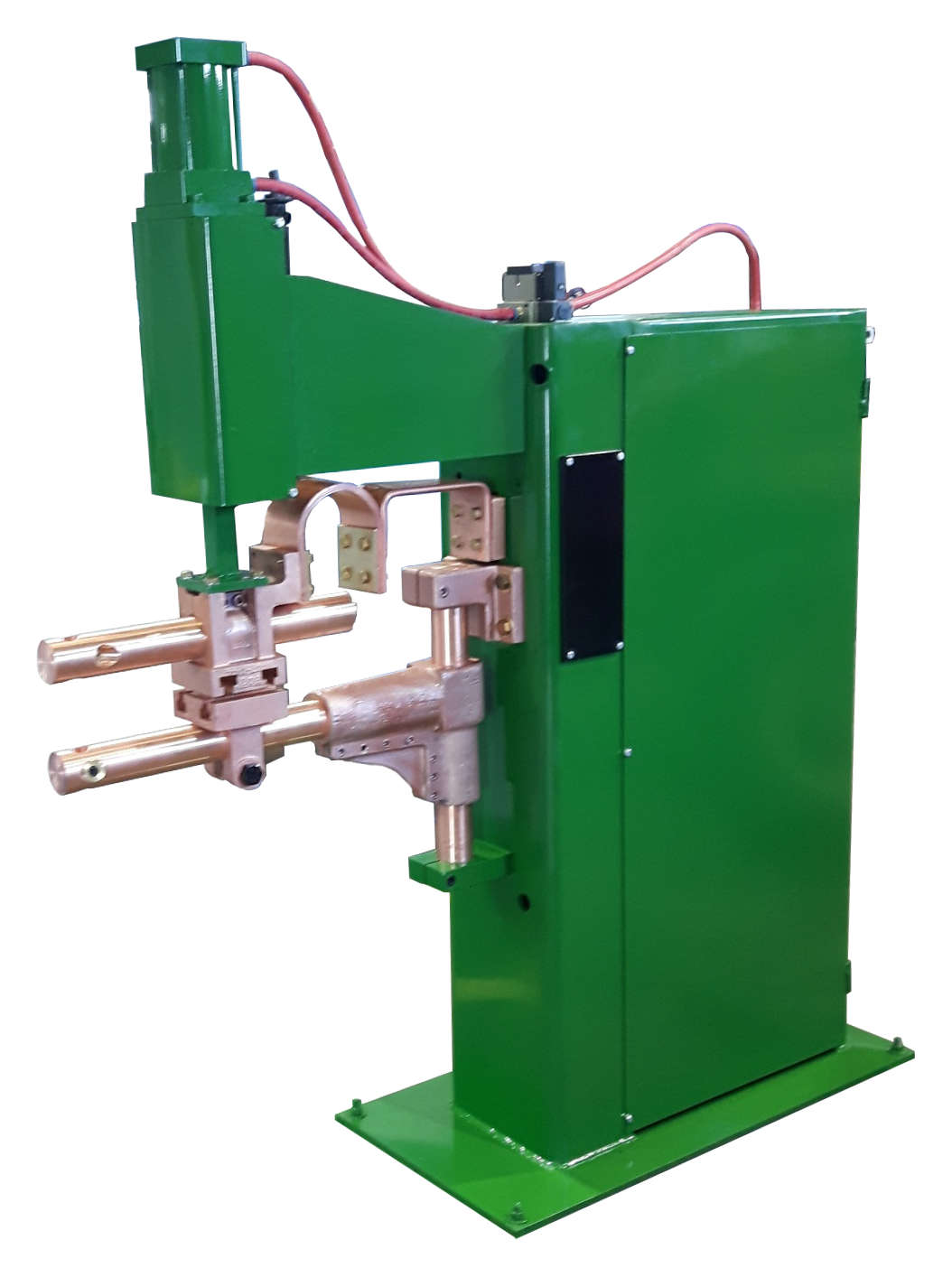

The model AFPL-3 is a heavy duty spot welder complete with 2 1/2" solid copper arms drilled at 90° and 30° at one end, upper and lower electrodes are standard water cooled ejector type. The electrode holders are 1 1/4" diameter and are also water cooled. The lower knee of the model AFPL-3 has an 8" vertical adjustment capability. The unit also has an 8 point heat selector and a single stage foot switch, water manifolds, air line filter, regulator, gauge, lubricator. Four way solenoid with speed controls, and a 4" bore x 4"stroke double acting air cylinder. Platens are also available for the AFPL-3.

All Welding Machines are available in 208, 220, 440, and 550 Voltage configurations.

The model AFPL-3 is available in the following KVAs: 30, 50, and 75

Features

Arm Adjustments

Four inch stroke ram.

Swinging lower arm.

Vertical or 30° offset copper arms clamping of water cooled electrodes.

AVAILABLE OPTION: Air cylinder specific size.

Electrodes

AVAILABLE OPTION: Projection platens.

Frame

1 1/4" water cooled electrode holders.

Cylinder speed control mufflers.

Transformer

Water cooled transformer.

Welding Arms

1,000 lbs.

tip pressure.

Welding Controls

AVAILABLE OPTION: Full automatic control.

AVAILABLE OPTION: Electric ram release for point dressing and set up.

AVAILABLE OPTION: 2 stage foot switch.

AVAILABLE OPTION: From 2 to 99 programmable settings.

AVAILABLE OPTION: Water Chiller

Other

Filter, Regulator, and Lubricator with shut off valve & gauge.

8 Welding heats.

Specifications

RATED KVA THROAT DEPTH MAX TIP OPENING C.R. STEEL GA. STAINLESS GA. GALV. STEEL GA. L.C. STEEL ROD GA. APPROX SHIPPING WEIGHT
